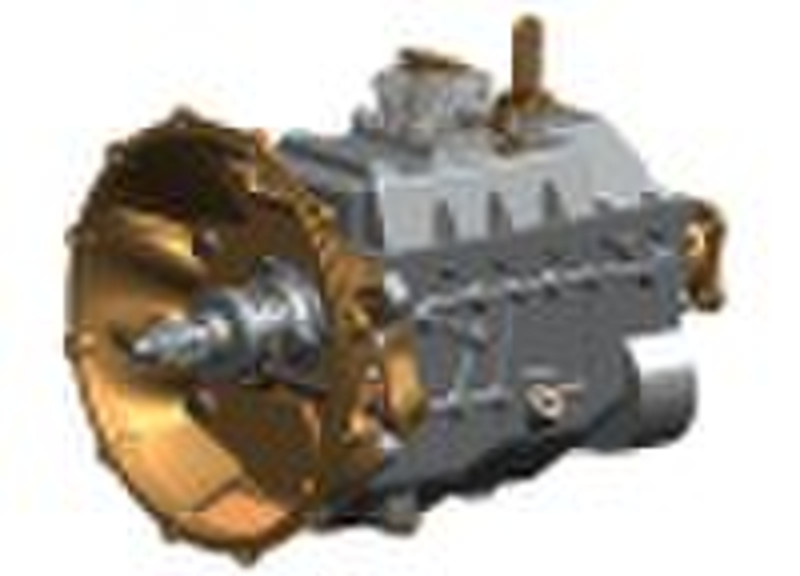

QJ506 Synchronous Transmission(Truck)

QJ506 Synchronous Transmission(Truck) Structure description QJ506 (truck) is three-axis drive gear fixed axis transmission ,there are six forward gears and one reverse, first gear and the reverse adopts the combination switch gear ,Other shifts are used lock ring synchronizer shift. Used double pole type institution be used in change shift institution, can be equipped with various types of single-shaft institution. Shift light, reliable, and can meet the remote control and direct manipulation. Transmission can be equipped with our company's power take off and post Deputy box,SAE#2 clutch housing and accessories. Installation Method Transmission and engine installed directly, the transmission vertically installed. Technical data TypeInput torqueN·mStandard gear ratiofirst gearsecond gearthird gearFourth gearFifth gearsixth gearthe reverse gearDirect gear5607.644.402.631.671.251.007.10Direct gear5608.004.612.761.751.351.007.45Overdrive gear6006.0983.512.101.3310.7415.67Overdrive gear6006.6283.812.281.4510.8106.17Odometer gear ratio13/5,20/6(pulse electronic sensors optional)Total weight156KgFuel charge of empty box7LInput torque depends on the type of car, technical characteristics and operation conditions.(For reference data) If you need a detailed and non-standard installation transmission technology material, technical data, please contact with our company.
